Adding calculated fields to a report

Top  Previous  Next



Calculated fields allow you to add data that is derived from a calculation based on fields and other information. See below for details on how to add, edit and delete barcodes in your report whilst in design mode in the report designer.





Adding a Calculated Field



Select the Calculated Field button from the Tools Panel.

clip319



Draw the Calculated Field on to a section of the report.

clip277

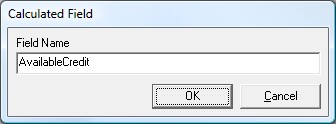

Enter a name for the calculated field and press OK.

clip320

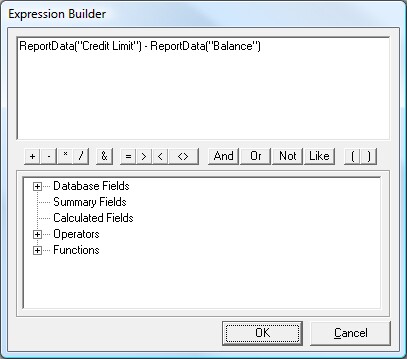

Use the expression builder to build your expression, and press OK to continue. Resize and format the field as required.





clip321



Editing a calculated field



Select the calculated field in the sections panel, press the right mouse button and select Edit from the drop down menu.

clip322



Use the expression builder to edit your expression, and press OK to continue. Resize and format the field as required.

clip321



Deleting a calculated field



Select the calculated field in the sections panel, then either press the delete key, or press the right mouse button and select delete from the drop down menu.

clip323
