Tree View Selection Panel - Objects to filter

Top  Previous  Next

The Tree View Selection Panel window Objects to filter tab allows you to specify which objects on your dashboard will be filtered according to the selections in the tree view selection panel.



The tree view on the objects to filter tab contains a root node for all tabs in your dashboard that contain at least one object that is derived from the same query data set as the tree view filter panel. Each root node contains a child node for each dashboard object in that tab that is derived from the same query data set as the tree view filter panel.



Follow the steps below to apply the filter to objects on the dashboard;

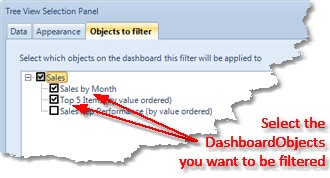

clip576



To apply the filter to an object on your dashboard, select the object in the tree view.



To remove the filter from an object on your dashboard, uncheck the object in the tree view.

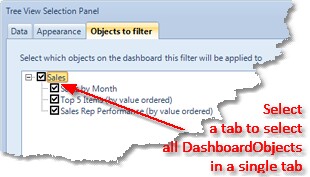

clip577



If you want to apply or remove the filter from all objects in a single tab, check or uncheck the tab in the tree view.
