Check boxes are visual objects that represent logical data returned by the query that is embedded in your report. See below for details on how to add, edit and delete check boxes whilst in design mode in the report designer.

Adding a label

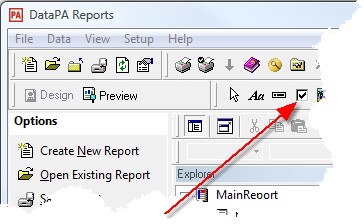

Select the Check Box button from the Tools Panel.

Draw the check box on to a section of the report.

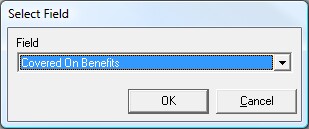

Select the logical field you wish to add a check box for, and press OK.

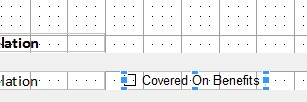

Resize and format the check box as required.

Editing a label

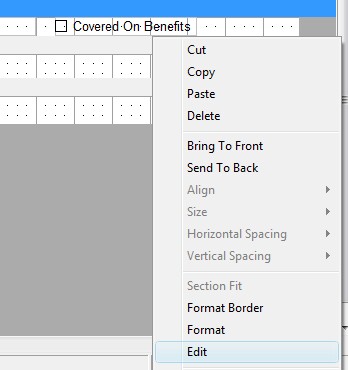

Select the check box in the sections panel, press the right mouse button and select Edit from the drop down menu.

Deleting a label

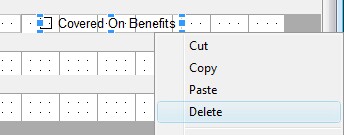

Select the check box in the sections panel, then either press the delete key, or press the right mouse button and select delete from the drop down menu.
