Adding images to a report

Top  Previous  Next



See below for details on how to add, edit and delete images in your report whilst in design mode in the report designer.





Adding an image

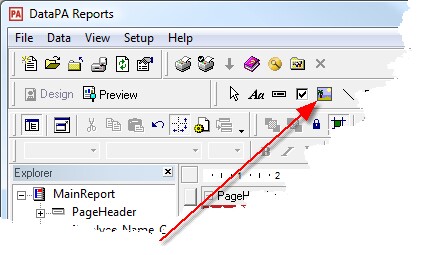

Select the Image button from the Tools Panel.

clip292

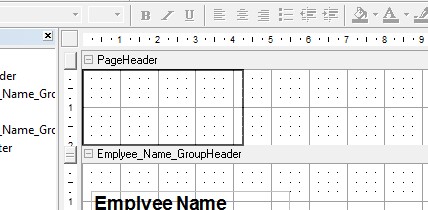

Draw the check box on to a section of the report.

clip293

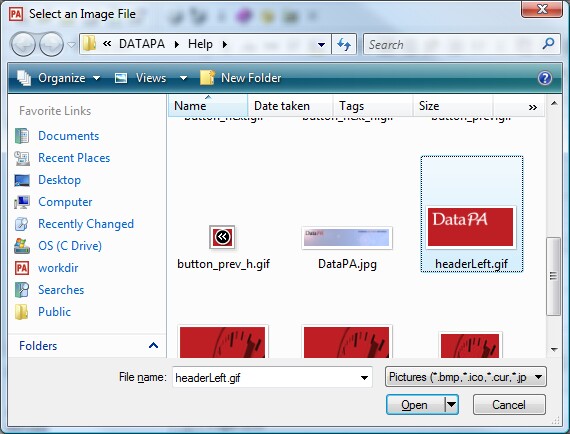

Select the picture you wish to add to your report.

clip294

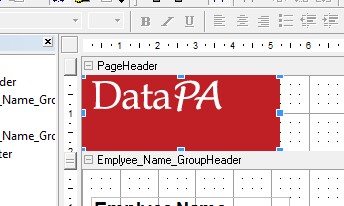

Resize and format the border of the  image as required.

clip295



Editing an image

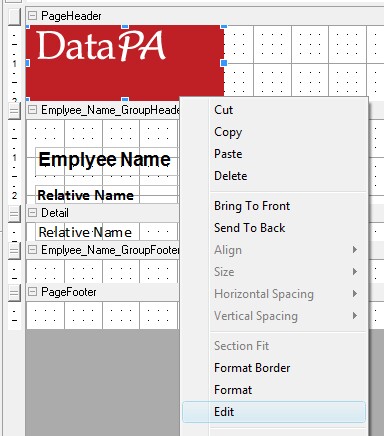

Select the image in the sections panel, press the right mouse button and select Edit from the drop down menu.

clip296

Select the image you wish to replace the current image in your report.

clip294

Resize and format the border of the  image as required.

clip295



Deleting an image

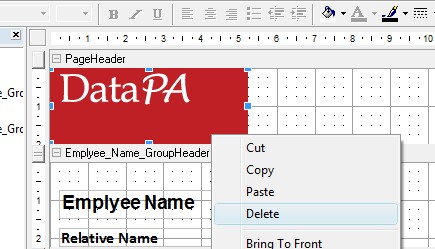

Select the image in the sections panel, then either press the delete key, or press the right mouse button and select delete from the drop down menu.

clip297
