AppServer Connection Details - General

Top  Previous  Next

There are two types of AppServer connection you can configure. The connection types are listed below with their description. See below for more details on how to configure each connection type.



Connection Type

Description

OpenEdge AppServer

A direct connection to an OpenEdge AppServer, either through a NameServer or direct to the AppServer broker. Ideal where the AppServer is located on the same local area network (LAN) as the client.

Pacific AppServer

A remote connection to a Pacific AppServer. Ideal where the  database or databases are located on a public wide area network (WAN) such as the Internet

OpenEdge AppServer using an Internet Adaptor (AIA)

A remote connection to an OpenEdge AppServer using http tunneling through the Progress AppServer Internet Adaptor. Ideal where the AppServer is located on a public wide area network (WAN) such as the Internet and a Pacific AppServer is not available.

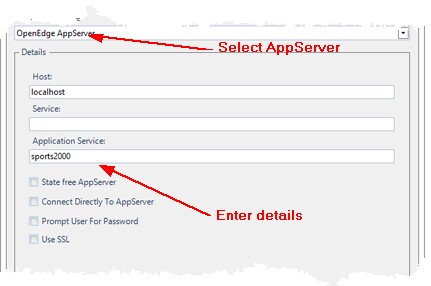

Openedge AppServer Connections

To configure an OpenEdge AppServer connection, select OpenEdge AppServer from the connection type, then enter the appropriate connection Details (detailed below).



clip615



Connection Property

Description

Host

Enter the network name or the IP Address of the machine hosting the Appserver.

Service

Enter the Service Name or Port Number of the Name Sever.  If you leave this blank, the default Port umber (5162) will be assumed.  If you opt to connect directly to the Appserver rather than through the Name Server, by clicking in the 'Connect Directly To Appserver' check box, you must specify either the Service Name or the Port Number of the Appserver.

Application Service

Enter the Name of the Application Service to connect to.

State free AppServer

Select if you are configuring a connection to an OpenEdge 10 state free appserver (see Progress AppServer Internet Adaptor).

Connect directly to AppServer

Select if you want to connect directly to the AppServer rather than via a NameServer.

Prompt User For Password

Select if you want DataPA to prompt the user for a username and password to validate the connection to the AppServer. The username and password entered by the user will be passed to the AppServer connect procedure.

Use SSL

Select this checkbox if you wish to connect to the AppServer using SSL encryption

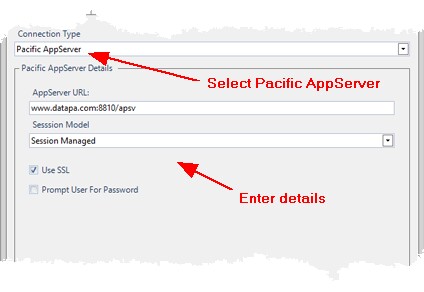

Pacific AppServer
If you wish to connect to an OpenEdge database over the internet, you may wish to connect via a Pacific AppServer. To configure a Pacific AppServer connection, enter the name by which this connection will appear in the Select Connection screen for the connection you are creating or editing, then select Pacific AppServer from the connection type, then enter the appropriate connection Details (detailed below).



clip5839



Connection Property

Description

AppServer URL

Enter the string which identifies the location of the Pacific AppServer. The URL should not include usernames, passwords or http protocol identifiers or session model variables

Session Model

Select whether you require a session free or session managed connection. Unless you have a specific reason to require session managed, we would always recommend session free as it will make best uses of the resources on your server.

Use SSL

Select if you wish DataPA to connect to the web server hosting the AIA using SSL encryption

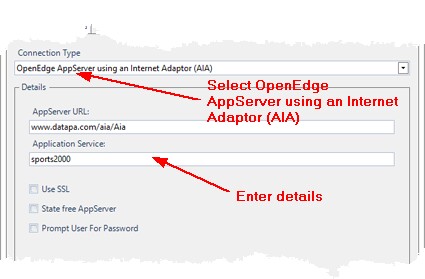

OpenEdge AppServer using an Internet Adaptor (AIA) Connections

If you are connecting to the OpenEdge Appserver over the internet, you need to connect via the Appserver Internet Adaptor. To configure a OpenEdge AppServer AIA connection, OpenEdge AppServer using an Internet Adaptor (AIA) from the connection type, then enter the appropriate connection Details (detailed below).



clip616



Connection Property

Description

AppServer URL

Enter the string which identifies the location of the AIA (Appserver Internet Adaptor). The URL should not include usernames, passwords or http protocol identifiers. e.g. mydomain.com/aia/Aia

Application Service

Enter the Name of the Application Service to connect to.

Use SSL

Select if you wish DataPA to connect to the web server hosting the AIA using SSL encryption

State free AppServer

Select if you are configuring a connection to a state free appserver (see Progress AppServer Internet Adaptor).

Prompt User For Password

Select if you want DataPA to prompt the user for a username and password to validate the connection to the AppServer. The username and password entered by the user will be passed to the AppServer connect procedure.
